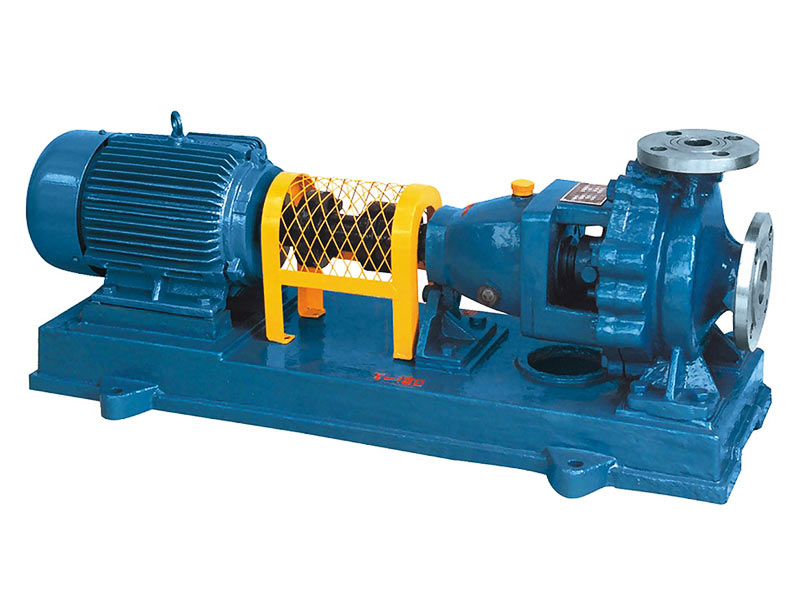

IS Single-stage Single-suction Centrifugal Pump
Flow: 3~460m3/h
Head: 4~125m
Caliber: 32~200mm
Power: 0.22~110kW
Speed: 1450~2900r/min
Working Pressure: 2.5MPa
If you want to get more product information please contact us!
Pumps type IS is a kind of axial suction centrifugal pump with single stage and suction. It is used to pump clear water and physical or chemical liquid similar to clear water below 85°C, and is widely applied to industries, to city water supply and drain, and also to agricultural and orchard irrigation.
Model Meaning
IS/IR/IH 100 - 80 - 160 A
* IS — clear water centrifugal pump
* IR — heat water centrifugal pump
* IH —chemical centrifugal pump
100 — inlet caliber
80 — outlet caliber
160 — impeller diameter
A — first incision
It is used for drainage of industry, agriculture and city and fire-fighting drainage.
2. Using Instruction
1.Mechanical seal and packing seal
2.Types of stainless steel: 301, 304, 316L
2. Specifications
Model | Flow(m3/h) | Head(mpa) | Power(kw) | Speed (rpm) | Caliber (mm) |
IS50-32-125 | 12.5 | 20 | 2.2 | 2900 | 50 |
3.5 | 5 | 0.55 | 1450 | ||
IS50-32-160 | 12.5 | 32 | 3 | 2900 | 50 |
6.3 | 8 | 0.55 | 1450 | ||
IS50-32-200 | 12.5 | 50 | 5.5 | 2900 | 50 |
6.3 | 12.5 | 1.1 | 1450 | ||
IS50-32-250 | 12.5 | 80 | 11 | 2900 | 50 |
6.3 | 20 | 1.1 | 1450 | ||
IS65-50-125 | 25 | 20 | 3 | 2900 | 65 |
12.5 | 3 | 0.55 | 1450 | ||
IS65-50-160 | 25 | 32 | 5.5 | 2900 | 65 |
12.5 | 8 | 0.75 | 1450 | ||
IS65-40-200 | 25 | 50 | 7.5 | 2900 | 65 |
12.5 | 12.5 | 1.5 | 1450 | ||
IS65-40-250 | 25 | 80 | 15 | 2900 | 65 |
12.5 | 20 | 3 | 1450 | ||
IS65-40-315 | 25 | 125 | 30 | 2900 | 65 |
12.5 | 32 | 4 | 1450 | ||
IS80-65-125 | 50 | 20 | 5.5 | 2900 | 80 |
25 | 5 | 0.75 | 1450 | ||
IS80-65-160 | 50 | 32 | 7.5 | 2900 | 80 |
25 | 8 | 1.5 | 1450 | ||
IS80-50-200 | 50 | 50 | 15 | 2900 | 80 |
25 | 12.5 | 2.2 | 1450 | ||
IS80-50-250 | 50 | 80 | 22 | 2900 | 80 |
25 | 20 | 3 | 1450 | ||
IS80-50-315 | 100 | 125 | 37 | 2900 | 80 |
25 | 32 | 5.5 | 1450 | ||
IS100-80-125 | 100 | 20 | 11 | 2900 | 100 |
20 | 5 | 1.5 | 1450 | ||
IS100-80-160 | 100 | 32 | 15 | 2900 | 100 |
50 | 8 | 2.2 | 1450 | ||
IS100-80-161 | 100 | 50 | 22 | 2900 | 100 |
50 | 12.5 | 4 | 1450 | ||
IS100-80-162 | 100 | 80 | 37 | 2900 | 100 |
50 | 20 | 5.5 | 1450 | ||
IS100-80-163 | 100 | 125 | 75 | 2900 | 100 |
50 | 32 | 11 | 1450 | ||
IS100-80-164 | 200 | 50 | 45 | 2900 | 100 |
100 | 12.5 | 7.5 | 1450 | ||
IS100-80-165 | 200 | 80 | 75 | 2900 | 100 |
100 | 20 | 11 | 1450 | ||
IS125-100-315 | 200 | 32 | 15 | 1450 | 125 |
IS125-100-400 | 200 | 50 | 30 | 1450 | 125 |
IS150-125-250 | 200 | 20 | 18.5 | 1450 | 150 |
IS150-125-315 | 200 | 32 | 30 | 1450 | 150 |
IS150-125-400 | 200 | 50 | 45 | 1450 | 150 |
IS200-150-250 | 400 | 20 | 37 | 1450 | 200 |
IS200-150-315 | 400 | 32 | 55 | 1450 | 200 |
IS200-150-400 | 400 | 50 | 90 | 1450 | 200 |
more specifications pls feel free to contact us. |
