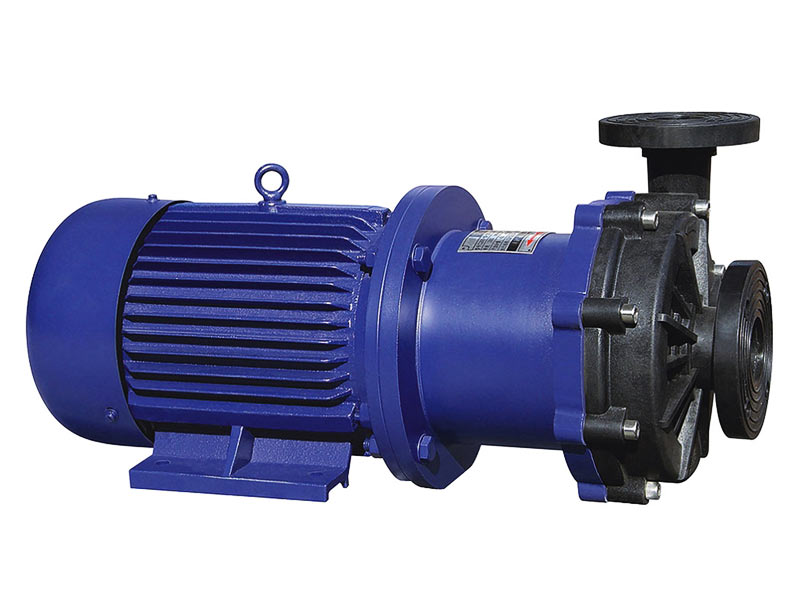

CQF Magnetic Pump

Flow: 0.9~25m3/h

Head: 3~32m

Caliber: 10~65mm

Power: 0.025~7.5kW

Speed: 2900r/min

Working Pressure: 0.6MPa

If you want to get more product information please contact us!

  • Product Overview

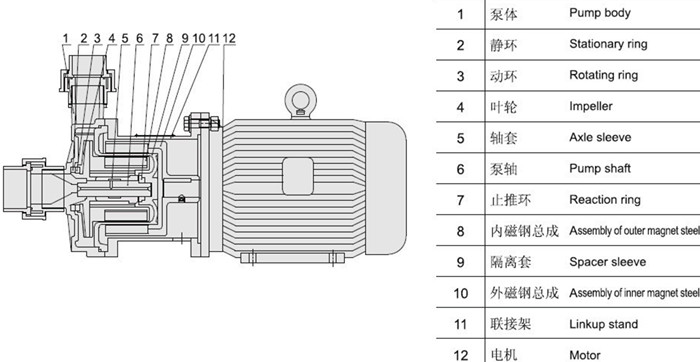

  • Product Structure
  • Application
  • Technical Data
Product Introduction of CQF magnetic pump
In the field of petroleum, chemicals, war industry and pharmaceutical, they are often need to handle some corrosive liquids, for the reason, CQF magnetic pumps can meet the need.

Model explanation
32 CQ (F) 15
32 — Inlet Diameter
CQ (F) — * CQ Stainless Steel Magnetic Pump
* CQF Engineering Plastic Magnetic Pump
15 — Head (m)
1. Application Scope
CQF magnetic pump are widely used in the industries of petroleum, chemicals, pharmaceuticals, printing and dyeing, electroplating, foodstuff, environment protection and etc. to handle corrosive liquid not containing scrap irons, especially inflammable, explosive, volatile, toxic and precious liquids.

2. Using Instruction

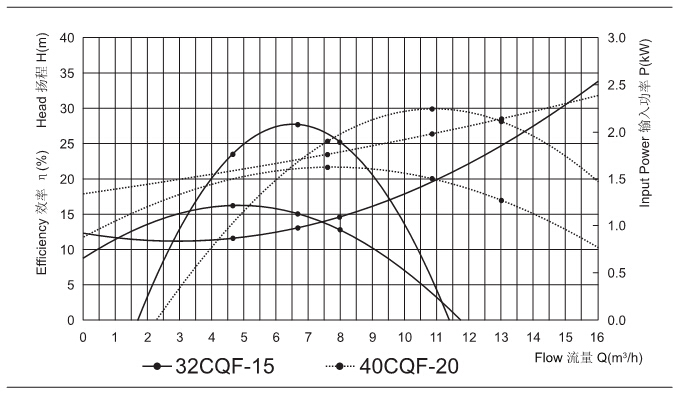

1. Performance curve


2. Specifications
Model Flow(m3/h) Head(mpa) Power(kw) Speed (rpm) Caliber (mm)
10CQF-3 0.9 3 0.025 2900 10/8
14CQF-5 1.2 5 0.12 2900 14/10
16CQF-8X 1.8 8 0.18 2900 16/10
20CQF-12X 3 12 0.37 2900 20/15
14CQF-5 1.2 5 0.12 2900 14/10
16CQF-8X 1.8 8 0.18 2900 16/10
20CQF-12X 3 12 0.37 2900 20/15
25CQF-15X 5.4 15 1.1 2900 25/20
32CQF-15X 6.6 15 1.1 2900 32/25
32CQF-25 4.8 25 1.1 2900 32/25
32CQF-25N 4.8 25 1.5 2900 32/25
40CQF-20X 10.8 20 2.2 2900 40/32
50CQF-25X 12.5 25 3 2900 50/40
50CQF-32X 12.5 32 4 2900 50/40
MORE SPECIFICATIONS PLEASE CONTACT US.
