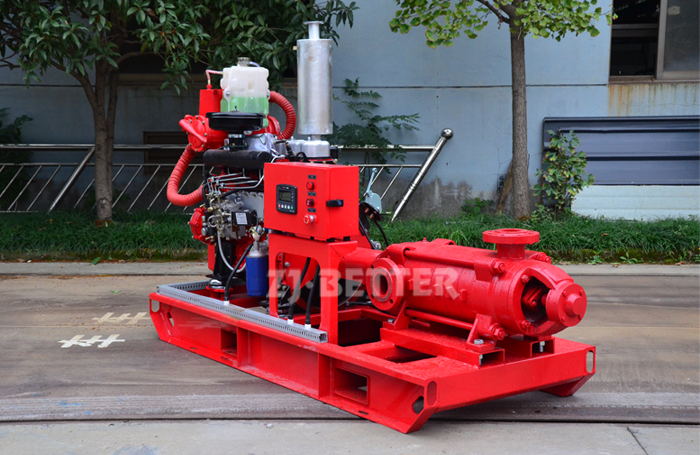

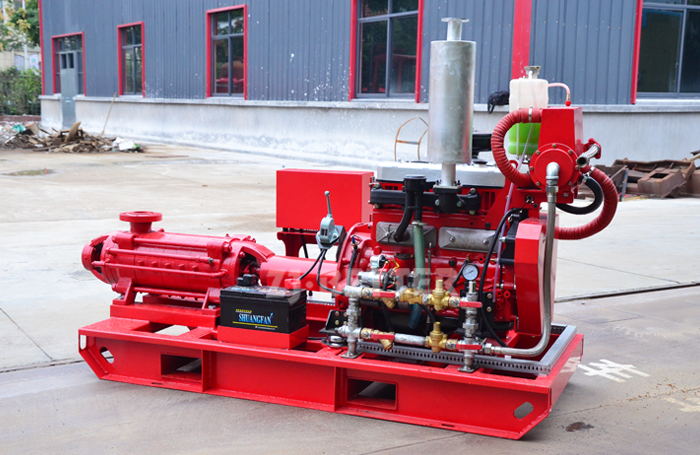

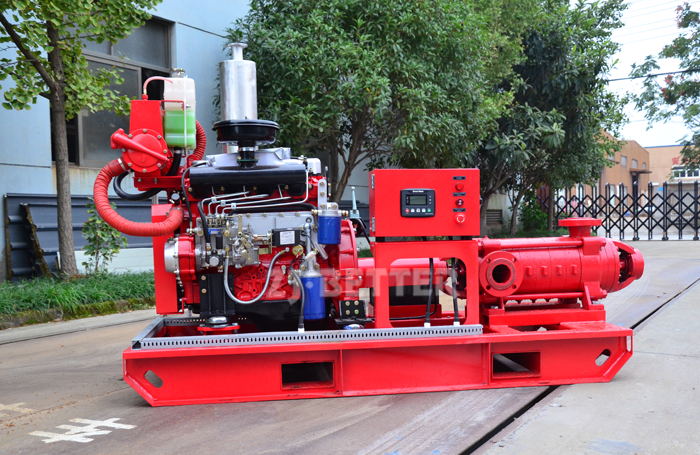

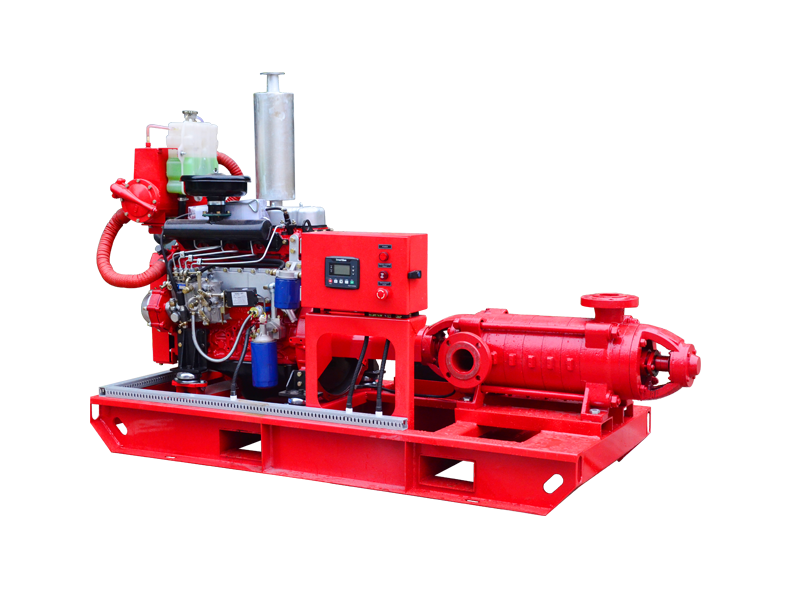

XBC-D Diesel Multistage Fire Pump

Flow: 238-1000 gpm / 15-63 l/s

Head: 2-21 bar / 29-304.5 psi

Caliber: 100-150mm

Power: 11-160kW

Speed: 1500r/min

Working Pressure: 1.6MPa

If you want to get more product information please contact us!

  • Product Overview
  • Structure
  • Applications
  • Technical Data
XBC series diesel engine fire-fighting pump group is a new-style fire-fighting equipment developed in accordance with GB6245-98 and NEPA20 standard, and upon the fitted fire-fighting pumps (single-stage single-suction type, single-stage double-suction type and sectional multistage type), can be divided into XBC-IS, XBC-S and XBC-D three sub series. The equipment has a wide range of pressure and temperature and can be used for almost every occasion necessary for fire-fighting.

The XBC-D Multistage Diesel Fire Pump is an excellent product domestic or imported, features good starting performance, strong overload capacity, compact structure, easy maintenance and use and high degree of automation. The XBC-D Multistage Diesel Fire Pump is really a fire-fighting one advanced and reliable in performance.




1.Applications

High-rise hotel, high public places;
High-rise office buildings, high-rise residential;
Chemical, oil refining, metallurgical, enterprises;
Energy, medicine and military, enterprises.


2. Using Instruction

1. The height of the machine room should be depended on the equipment’s height and the lifting apparatus, 3-5m ad the effective height in general.
2. To ensure a good ventilation inside of the machine room, the temperature there should not be over 40°C and enough venting temperature holes must be set.
3. When to mount both inlet and outlet pipes of the fire-fighting pump, do not let their weight loading on the pump so as to prevent it against damage and its performance of running from being affected.
4. It is not allowed to mount the control cabinet in the front of the diesel engine’s radiator, otherwise the electric components inside of the cabinet would be affected and not work normally.

ModeL FLow(L/s) Head(mpa) Power(kw) Speed (rpm) Inlet(mm) Outlet(mm)
XBD3/30-100S-400C 30 0.3 18.5 1480 150 100
XBD4/55-100S-260C 55 0.4 37 2950 150 100
XBD6.5/70-100S-260 70 0.65 75 2950 150 100
XBD11.6/80-100S-320 80 1.16 132 2950 150 100
XBD2.5/95-150S-350B 95 0.25 37 1480 200 125
XBD6/75-125S-480A 75 0.6 75 1480 200 125
XBD7.2/110-125S-300C 110 0.72 110 2950 200 125
XBD8.4/120-125S-300A 120 0.84 160 2950 200 125
XBD2/85-150S-350C 85 0.2 30 1480 200 150
XBD3.3/90-150S-450C 90 0.33 45 1480 200 150
XBD5/110-150S-450A 110 0.5 90 1480 200 150
XBD9/150-150S-570 150 0.9 200 1480 200 150
XBD2.4/160-200S-340A 160 0.24 55 1480 250 200
XBD3.4/150-200S-410B 150 0.34 75 1480 250 200
XBD6.8/180-200S-530A 180 0.68 180 1480 250 200
XBD8.2/200-200S-530 200 0.82 250 1480 250 200
XBD2.2/220-250S-390C 220 0.22 75 1480 300 250
XBD3.4/230-250S-470C 230 0.34 110 1480 300 250
XBD4.3/280-250S-470A 280 0.46 200 1480 300 250
XBD10/300-250S-610 300 1 400 1480 300 250
XBD3/370-300S-450C 370 0.3 160 1480 400 300
XBD5.1/450-300S-450 450 0.51 315 1480 400 300
XBD8/430-300S-550 430 0.8 450 1480 400 300
XBD12/430-300S-710A 430 1.2 710 1480 400 300
MORE SPECIFICATIONS PLEASE CONTACT US.
