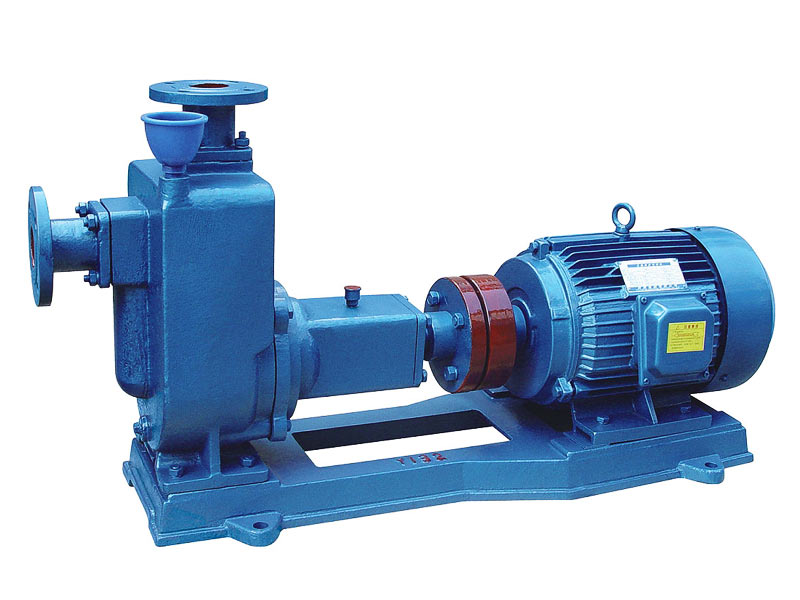

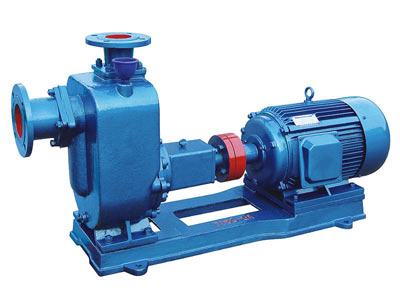

ZW (P) Series Self-priming Non-clog Sewage Pump
Flow: 2~1000m3/h
Head: 2~80m
Caliber: 25~300mm
Power: 0.75/2P~110/4P kW
Speed: 1450~2900r/min
Working Pressure: 1.0MPa
If you want to get more product information please contact us!
Product Introduction of ZW (P) series self-priming non-clog sewage pump
ZW (P) series self-priming non-clog sewage pump (hereinafter referred to as self-priming) for conveying water or water containing particles can be used as fire protection purposes.
Model explanation
50 ZW 10-20 P
50 –- Inlet and outlet diameter
ZW - Non-clogging self-priming sewage pump
10 – Flow (m3/h)
20 – Head (m)
* P -stainless B-explosion-proof
* B –explosion-proof
ZW (P) series self-priming non-clog sewage pump (hereinafter referred to as self-priming) for conveying water or water containing particles can be used as fire protection purposes.
Model explanation
50 ZW 10-20 P
50 –- Inlet and outlet diameter
ZW - Non-clogging self-priming sewage pump
10 – Flow (m3/h)
20 – Head (m)
* P -stainless B-explosion-proof
* B –explosion-proof

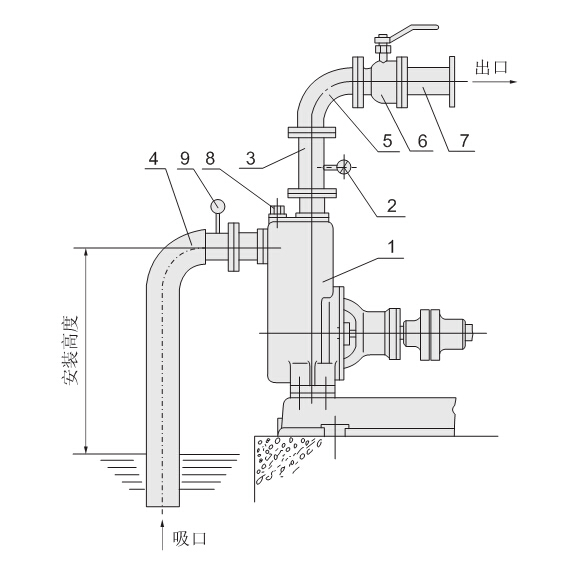

1. pump 2. pressure gauge 3. vertical pipe outlet 4. inhalation rigid pipe 5. elbow
6. the flow control valve 7. export pipeline 8. night plus plug 9. vacuum table
1. Application Scope
Can use for polluted wastewater discharges, residential sewage stations, urban sewage treatment plant drainage systems, air defense system, pumping station, water plant's water supply facilities, hospitals, hotels sewage emissions, municipal engineering construction sites, mining facilities with machines, biogas digesters in rural areas, irrigation and other industries, conveyor belt particles of sewage, dirt
2. Using Instruction
1. ZW (P) series self-priming pump rated voltage of 380V, 50Hz when using power frequency;
2. The medium temperature does not exceed 100 ° C, medium density <= 1150kg / m3, PH value is within the range of 5-9;
3. No more than 1000 meters above sea level;
4. The transmission medium viscosity not exceeding 1000CP;
5. The products are mainly made of cast iron, not for corrosive or corrosive medium;
6. Material mainly for stainless steel should be informed when ordering delivery of the physical and chemical properties of the medium, not conveying corrosive or corrosive media.
Note: Before the selection or installation of the pump actual conditions of use must conform to the above terms, to ensure the proper use of the product!
Can use for polluted wastewater discharges, residential sewage stations, urban sewage treatment plant drainage systems, air defense system, pumping station, water plant's water supply facilities, hospitals, hotels sewage emissions, municipal engineering construction sites, mining facilities with machines, biogas digesters in rural areas, irrigation and other industries, conveyor belt particles of sewage, dirt
2. Using Instruction
1. ZW (P) series self-priming pump rated voltage of 380V, 50Hz when using power frequency;
2. The medium temperature does not exceed 100 ° C, medium density <= 1150kg / m3, PH value is within the range of 5-9;
3. No more than 1000 meters above sea level;
4. The transmission medium viscosity not exceeding 1000CP;
5. The products are mainly made of cast iron, not for corrosive or corrosive medium;
6. Material mainly for stainless steel should be informed when ordering delivery of the physical and chemical properties of the medium, not conveying corrosive or corrosive media.
Note: Before the selection or installation of the pump actual conditions of use must conform to the above terms, to ensure the proper use of the product!
1. Performance curve
2. Specifications
2. Specifications
| Model | Flow(m3/h) | Head(mpa) | Power(kw) | Speed(rpm) | Caliber (mm) |
| 25ZW6-10 | 6 | 10 | 1.1 | 2900 | 25 |
| 25ZW8-15 | 8 | 15 | 1.5 | 2900 | 25 |
| 32ZW8-12 | 8 | 12 | 1.1 | 2900 | 32 |
| 32ZW8-22 | 8 | 22 | 2.2 | 2900 | 32 |
| 40ZW10-20 | 10 | 20 | 2.2 | 2900 | 40 |
| 40ZW15-30 | 15 | 30 | 3 | 2900 | 40 |
| 50ZW20-7 | 20 | 7 | 1.1 | 2900 | 50 |
| 50ZW40-15 | 40 | 15 | 4 | 2900 | 50 |
| 65ZW25-7 | 25 | 7 | 1.5 | 2900 | 65 |
| 65ZW32-25 | 32 | 25 | 5.5 | 2900 | 65 |
| 65ZW30-50 | 30 | 50 | 11 | 2900 | 65 |
| 80ZW65-25 | 65 | 25 | 7.5 | 2900 | 80 |
| 80ZW80-35 | 80 | 35 | 15 | 2900 | 80 |
| 80ZW40-50 | 40 | 50 | 18.5 | 2900 | 80 |
| 80ZW50-60 | 50 | 60 | 22 | 2900 | 80 |
| 100ZW120-15 | 120 | 15 | 11 | 2900 | 100 |
| 100ZW100-40 | 100 | 40 | 30 | 2900 | 100 |
| 100ZW80-80 | 80 | 80 | 45 | 2900 | 100 |
| 125ZW120-20 | 120 | 20 | 15 | 1450 | 125 |
| 125ZW200-15 | 200 | 15 | 15 | 1450 | 125 |
| 150ZW145-7 | 145 | 7 | 7.5 | 1450 | 150 |
| 150ZW150-35 | 150 | 35 | 37 | 1450 | 150 |
| 150ZW250-25 | 250 | 25 | 45 | 1450 | 150 |
| 200ZW300-10 | 300 | 10 | 18.5 | 1450 | 200 |
| 300ZW800-14 | 800 | 14 | 55 | 1450 | 200 |
| MORE SPECIFICATIONS PLEASE CONTACT US. | |||||
