QDT Low-speed Flow Propeller

Power: 1.5~7.5kW

Speed: 36~135r/min

Diameter: 1000~2500mm

Thrust: 696~4275N

Current: 4~30A

Medium Temperature: <40°C

If you want to get more product information please contact us!

  • Product Overview

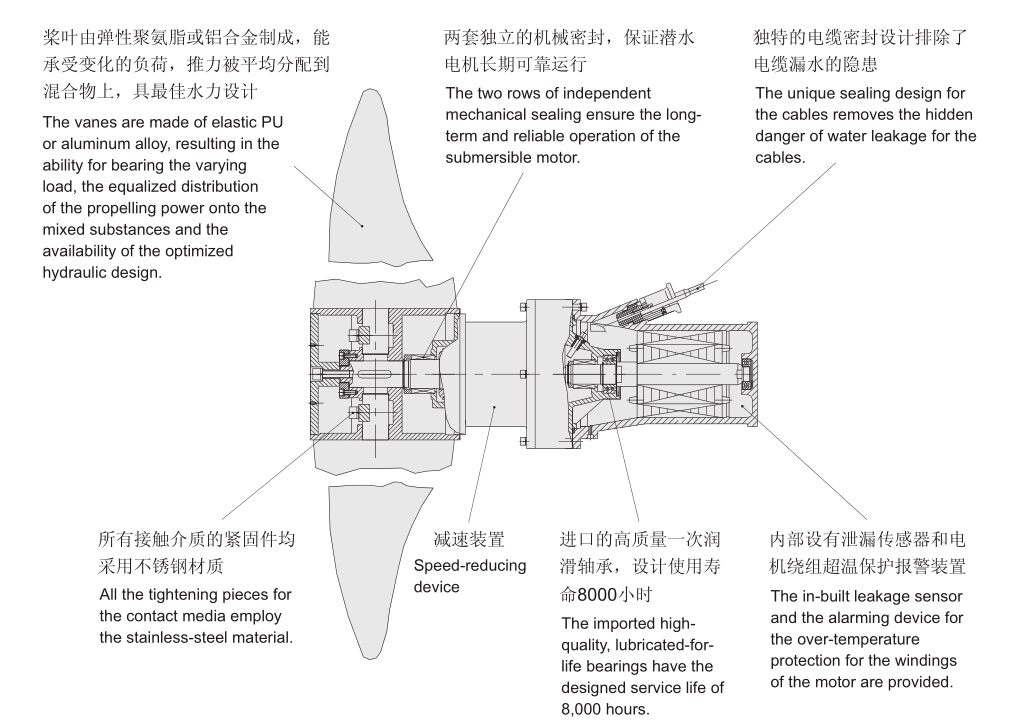

  • Product Structure
  • Application
  • Technical Data

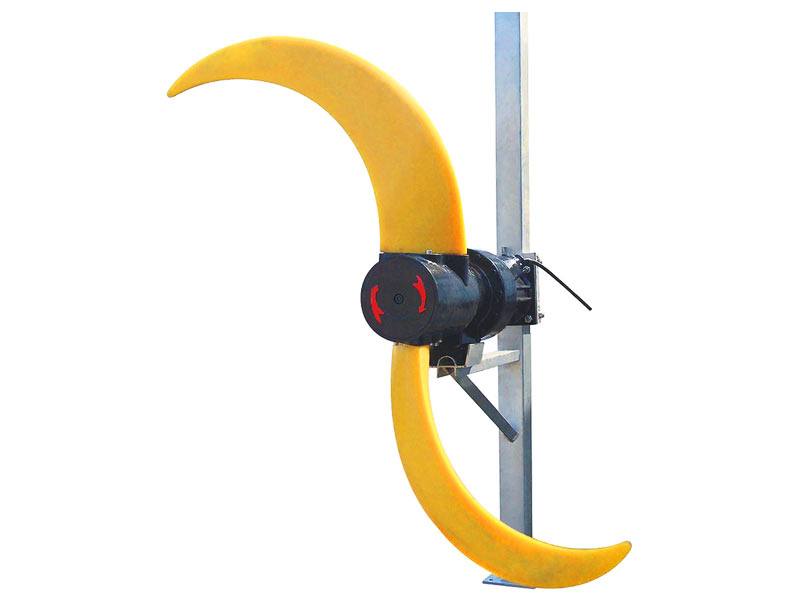

Product Introduction of QDT low-speed flow propeller
Model QDT low-speed flow propeller is extensively used for the flow propelling in the oxidizing ditches in the technological process of the water treatment, agitation in various types of bio-chemical tanks and also used in the mixing and flow propelling for freezing prevention in the rivers, landscape water cycling and so on. The low-speed flow propeller consists of the submersible motor, speed-reducing device, vanes, installation system, etc. The product is characterized by low power (1.5~7.5KW), low rotational speed (36~135rpm), large diameter of the vanes (1000~2500mm), low-speed rotation, production of large-volume flow field and wide scope of service. The swept-back, banana-shaped vanes have the self-cleaning function, being shaped with the use of PU or aluminum alloy through precision casting and having such advantages as light weight, high strength, good resistance against corrosion and so on. Its excellent frictional property can ensure the production of the good damping effect with relation to liquid under the moving state of low rotational speed so as to create the gentle water flow. The series of products have also,the mixing function apart from the flow propelling and creation of water flow as shown in the drawing.



1. Application Scope
Create a gentle flow of water, it can not only push and create the water flow, but also with agitation function.

2. Using Instruction
Medium tem <=40 degree
Diving depth <=10m
Medium PH 5~9
Medium density <=1150kg/m3

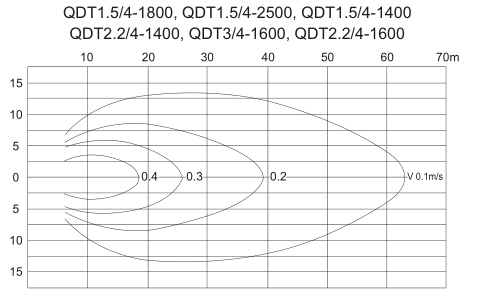

1. Performance curve


2. Specifications
Model Power (kw) Rated current (A) Rpm of propeller (r/min) Diameter of propeller (mm) Thrust (N) Weight(kg)
QDT1.5/4-1100/2-85/P 1.5 4 85 1000 1780 170
QDT3/4-1100/2-135/P 3 6.8 135 1100 2410 170
QDT1.5/4-1400/2-36/P 1.5 4 36 1400 696 180
QDT2.2/4-1400/2-42/P 2.2 4.9 42 1400 854 180
QDT2.2/4-1600/2-36/P 2.2 4.9 36 1600 1058 190
QDT3/4-1600/2-52/P 3 6.8 52 1600 1386 190
QDT1.5/4-1800/2-42/P 1.5 4 42 1800 1480 198
QDT3/4-1800/2-52/P 3 6.8 52 1800 1946 198
QDT4/4-1800/2-63/P 4 9 63 1800 2750 198
QDT2.2/4-2000/2-36/P 2.2 4.9 36 2000 1459 200
QDT4/4-2000/2-52/P 4 9 52 2000 1960 200
QDT4/4-2200/2-52/P 4 9 52 2200 1986 220
QDT5/4-2200/2-63/P 5 11 63 2200 2380 230
QDT1.3/4-2500/2-36/P 3 6.8 36 2500 2380 230
QDT4/4-2500/2-42/P 4 9 42 2500 2350 250
QDT5/4-2500/2-52/P 5 11 52 2500 3090 250
QDT7.5/4-2500/2-63/P 7.5 15 63 2500 4275 280
MORE SPECIFICATIONS PLEASE CONTACT US.
