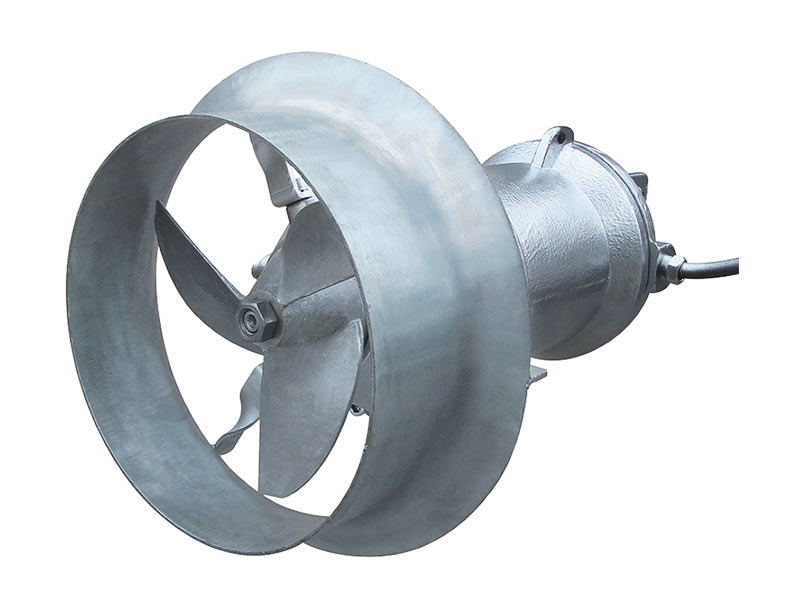

QJB Submersible Mixer

Power: 0.85~10kW

Speed: 480~980r/min

Diameter: 260~620mm

Thrust: 163~3300N

Current: 3.2~50A

Medium Temperature: 40

If you want to get more product information please contact us!

  • Product Overview

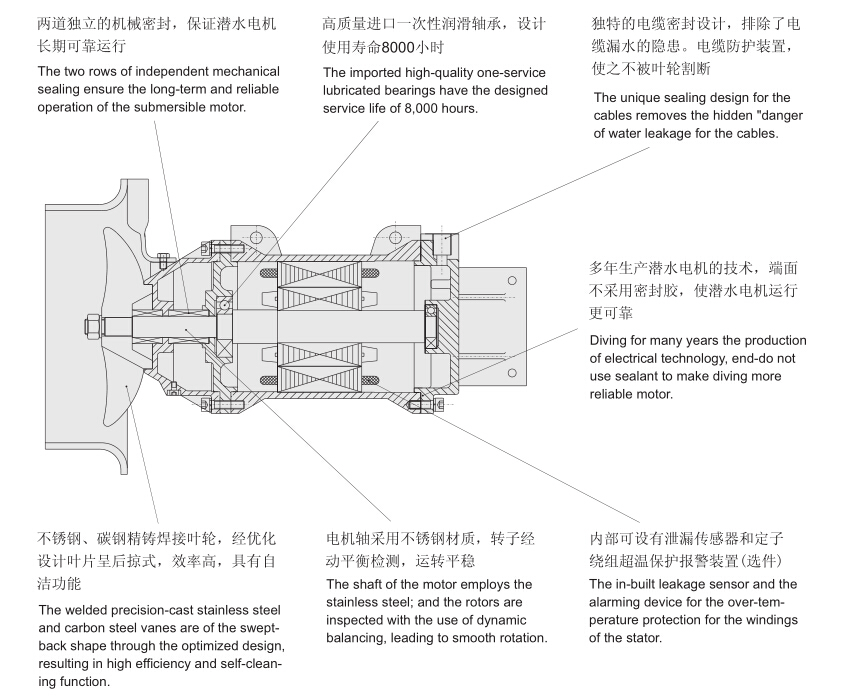

  • Product Structure
  • Application
  • Technical Data
Product Introduction of QJB Submersible Mixer
Model QJB Submersible Mixer, key equipment used in the water treatment technology, can meet the technological requirement on the homogeneity of the two-phase solid-liquid flow and three-phase solid-liquid-gas flow and the fluidity in the bio-chemical process in the flow path of the water treatment technology. It is composed of the submersible motor, vanes, installation system and so on. The submersible mixer belongs to the structure of the direct connection type. In comparison with the traditional high-power electric motor for speed reduction through the speed reducer, it is characterized by compact structure, low energy consumption, convenience in maintenance and repair and some other advantages. The vanes are made with the process of precision casting or punching, leading to high precision, large thrust as well as simple, nice-looking and streamlined profiling. The series of the products are suitable for usage in such locations as requiring solid-liquid agitating or mixing.



1. Application Scope
Suitable for the places need solid-liquid stirring and mixing
Stirring to create a flow for the month, to improve water quality, increase oxygen content in water, and effectively prevent the deposition of suspended solids

2. Using Instruction
1. Medium tem <=40 degree
2. Diving depth <=10m
3. Medium PH 5~9
4. Medium density <=1150kg/m3
5. Completely submerged in water, and can’t work in the environment of flammable and explosive, highly corrosive and high temperature.

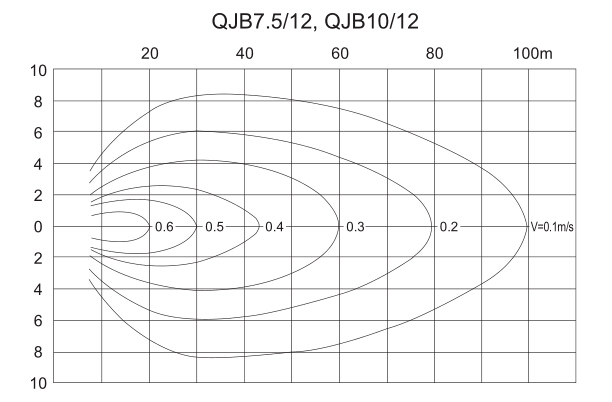

1. Performance curve


2. Specifications
Model Power (kw) Rated current (A) Rpm of propeller (r/min) Diameter of propeller (mm) Thrust (N) Weight(kg)
QJB0.85/8-260/3-740/S 0.85 3.2 740 260 163 55/65
QJB1.5/6-260/3-980/S 1.5 4 980 260 290 55/65
QJB2.2/8-320/3-740/S 2.2 5.9 740 320 582 88/93
QJB4/6-320/3-960/S 4 10.3 960 320 609 88/93
QJB1.5/8-400/3-740/S 1.5 5.2 740 400 600 74/82
QJB2.5/8-400/3-740/S 2.5 7 740 400 800 74/82
QJB3/8-400/3-740/S 3 8.6 740 400 920 74/82
QJB4/6-400/3-980/S 4 10.3 980 400 1200 74/82
QJB4/12-620/3-480/S 4 14 480 620 1400 190/206
QJB5/12-620/3-480/S 5 18.2 480 620 1800 196/212
QJB7.5/12-620/3-480/S 7.5 28 480 620 2600 240/256
QJB10/12-620/3-480/S 10 32 480 620 3300 250/266
MORE SPECIFICATIONS PLEASE CONTACT US.
