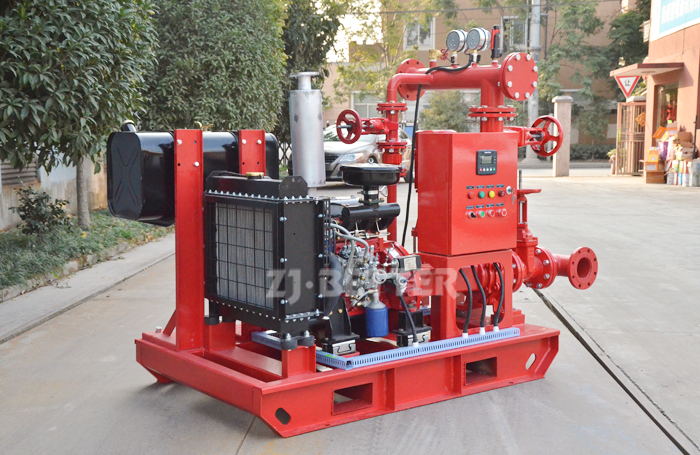

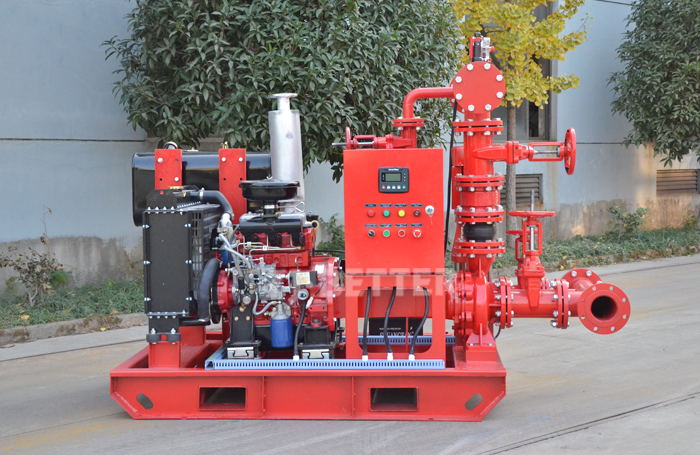

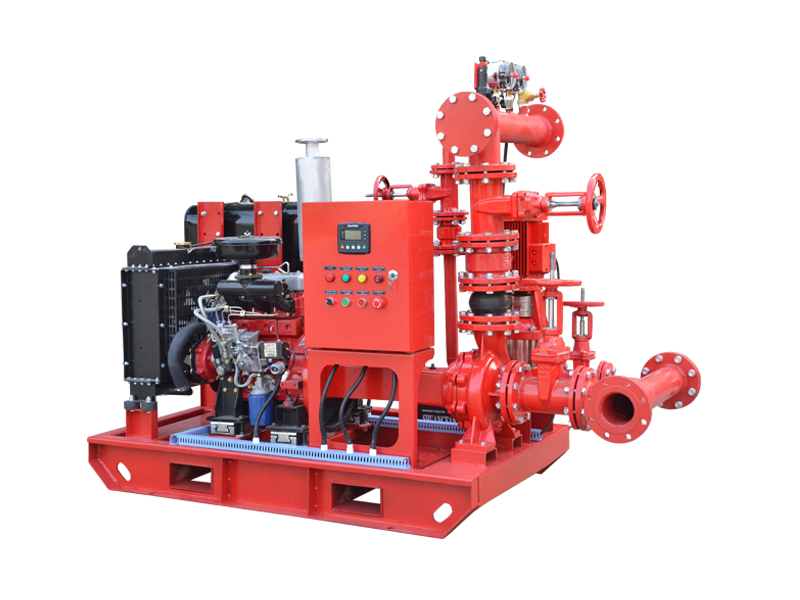

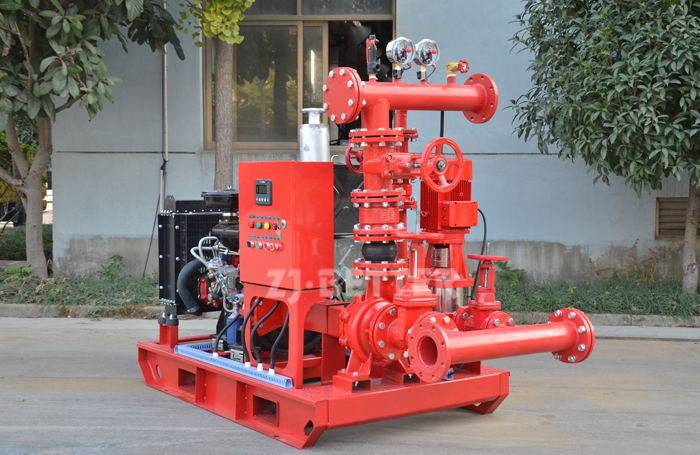

Diesel Fire Jockey Pump
Flow: 25-3000gpm
Head: 3-25Bar
Power: 3-20KW
Speed: 2900r/min
If you want to get more product information please contact us!
Specifications
DJ Fire pump system is made of Diesel pump+Jockey pump
Operation: 1 Duty (diesel pump) + 1 Jockey pump
Capacity: 100, 150, 200, 300, 400, 500, 750, 1000...GPM with pressure 4, 5, 6, 8, 10... Bar.
Pressure vessel 25, 50, 75, 100...liters, pressure will be 0.6mpa, 1.0mpa, 1.6mpa, select according to pump head.
| Model | Pump | Diesel Engine | Jockey Pump | |||||||
| Flow | Head | Pressure | Model | Power | Diesel Engine | Model | Head | Power | ||
| M3/h | GPM | bar | Pis | kW | bar | kw | ||||
| DJ25/3 | 5.6 | 25 | 3 | 44 | BTI40/40-171 | 4 | 173F | CDL2-5 | 3.7 | 0.55 |
| DJ25/4 | 5.6 | 25 | 4 | 58 | BTI40/40-171 | 4 | 173F | CDL2-6 | 4.5 | 0.75 |
| DJ25/5 | 5.6 | 25 | 5 | 73 | BTI40/40-171 | 4 | 173F | CDL2-7 | 5.2 | 0.75 |
| DJ25/6 | 5.6 | 25 | 6 | 87 | BTI40/40-171 | 4 | 173F | CDL2-9 | 6.7 | 1.1 |
| DJ25/7 | 5.6 | 25 | 7 | 102 | BTI50/50-198 | 6.7 | 186FA | CDL2-10 | 7.5 | 1.1 |
| DJ25/8 | 5.6 | 25 | 8 | 116 | BTI50/50-198 | 6.7 | 186FA | CDL2-12 | 9 | 1.5 |
| DJ25/9 | 5.6 | 25 | 9 | 131 | 1.5GCx3 | 8.6 | 192F | CDL2-13 | 9.7 | 1.5 |
| DJ25/10 | 5.6 | 25 | 10 | 145 | 1.5GCx4 | 9.2 | 195F | CDL2-14 | 10.5 | 1.5 |
| DJ25/11 | 5.6 | 25 | 11 | 160 | 1.5GCx4 | 9.2 | 195F | CDL2-15 | 11.2 | 1.5 |
| DJ25/12 | 5.6 | 25 | 12 | 174 | 1.5GCx5 | 10.2 | 1100F | CDL2-17 | 12.7 | 2.2 |
| DJ30/3 | 6.9 | 30 | 3 | 44 | BTI40/40-171 | 4 | 173F | CDL2-5 | 3.7 | 0.55 |
| DJ30/4 | 6.9 | 30 | 4 | 58 | BTI40/40-171 | 4 | 173F | CDL2-6 | 4.5 | 0.75 |
| DJ30/5 | 6.9 | 30 | 5 | 73 | BTI40/40-171 | 4 | 173F | CDL2-7 | 5.2 | 0.75 |
| DJ30/6 | 6.9 | 30 | 6 | 87 | BTI40/40-171 | 4 | 173F | CDL2-9 | 6.7 | 1.1 |
| DJ30/7 | 6.9 | 30 | 7 | 102 | BTI50/50-198 | 6.7 | 186FA | CDL2-10 | 7.5 | 1.1 |
| DJ30/8 | 6.9 | 30 | 8 | 116 | BTI50/50-198 | 6.7 | 186FA | CDL2-12 | 9 | 1.5 |
| DJ30/9 | 6.9 | 30 | 9 | 131 | 1.5GCx3 | 8.6 | 192F | CDL2-13 | 9.7 | 1.5 |
| DJ30/10 | 6.9 | 30 | 10 | 145 | 1.5GCx4 | 9.2 | 195F | CDL2-14 | 10.5 | 1.5 |
| DJ30/11 | 6.9 | 30 | 11 | 160 | 1.5GCx4 | 9.2 | 195F | CDL2-15 | 11.2 | 1.5 |
| DJ30/12 | 6.9 | 30 | 12 | 174 | 1.5GCx5 | 10.2 | 1100F | CDL2-17 | 12.7 | 2.2 |
| DJ100/10 | 22.7 | 100 | 10 | 145 | D25-30x4 | 20 | 295F | CDL2-14 | 10.5 | 1.5 |
| DJ100/11 | 22.7 | 100 | 11 | 160 | D25-30x4 | 20 | 295F | CDL2-15 | 11.2 | 1.5 |
| DJ100/12 | 22.7 | 100 | 12 | 174 | D25-30x4 | 20 | 295F | CDL2-17 | 12.7 | 2.2 |
The above is part of technical parameters. More information pls contact us!
| Model | Pump | Diesel Engine | Jockey Pump | |||||||
| Flow | Head | Pressure | Model | Power | Diesel Engine | Model | Head | Power | ||
| M3/h | GPM | bar | Pis | kW | bar | kw | ||||
| DJ25/3 | 5.6 | 25 | 3 | 44 | BTI40/40-171 | 4 | 173F | CDL2-5 | 3.7 | 0.55 |
| DJ25/4 | 5.6 | 25 | 4 | 58 | BTI40/40-171 | 4 | 173F | CDL2-6 | 4.5 | 0.75 |
| DJ25/5 | 5.6 | 25 | 5 | 73 | BTI40/40-171 | 4 | 173F | CDL2-7 | 5.2 | 0.75 |
| DJ25/6 | 5.6 | 25 | 6 | 87 | BTI40/40-171 | 4 | 173F | CDL2-9 | 6.7 | 1.1 |
| DJ25/7 | 5.6 | 25 | 7 | 102 | BTI50/50-198 | 6.7 | 186FA | CDL2-10 | 7.5 | 1.1 |
| DJ25/8 | 5.6 | 25 | 8 | 116 | BTI50/50-198 | 6.7 | 186FA | CDL2-12 | 9 | 1.5 |
| DJ25/9 | 5.6 | 25 | 9 | 131 | 1.5GCx3 | 8.6 | 192F | CDL2-13 | 9.7 | 1.5 |
| DJ25/10 | 5.6 | 25 | 10 | 145 | 1.5GCx4 | 9.2 | 195F | CDL2-14 | 10.5 | 1.5 |
| DJ25/11 | 5.6 | 25 | 11 | 160 | 1.5GCx4 | 9.2 | 195F | CDL2-15 | 11.2 | 1.5 |
| DJ25/12 | 5.6 | 25 | 12 | 174 | 1.5GCx5 | 10.2 | 1100F | CDL2-17 | 12.7 | 2.2 |
| DJ30/3 | 6.9 | 30 | 3 | 44 | BTI40/40-171 | 4 | 173F | CDL2-5 | 3.7 | 0.55 |
| DJ30/4 | 6.9 | 30 | 4 | 58 | BTI40/40-171 | 4 | 173F | CDL2-6 | 4.5 | 0.75 |
| DJ30/5 | 6.9 | 30 | 5 | 73 | BTI40/40-171 | 4 | 173F | CDL2-7 | 5.2 | 0.75 |
| DJ30/6 | 6.9 | 30 | 6 | 87 | BTI40/40-171 | 4 | 173F | CDL2-9 | 6.7 | 1.1 |
| DJ30/7 | 6.9 | 30 | 7 | 102 | BTI50/50-198 | 6.7 | 186FA | CDL2-10 | 7.5 | 1.1 |
| DJ30/8 | 6.9 | 30 | 8 | 116 | BTI50/50-198 | 6.7 | 186FA | CDL2-12 | 9 | 1.5 |
| DJ30/9 | 6.9 | 30 | 9 | 131 | 1.5GCx3 | 8.6 | 192F | CDL2-13 | 9.7 | 1.5 |
| DJ30/10 | 6.9 | 30 | 10 | 145 | 1.5GCx4 | 9.2 | 195F | CDL2-14 | 10.5 | 1.5 |
| DJ30/11 | 6.9 | 30 | 11 | 160 | 1.5GCx4 | 9.2 | 195F | CDL2-15 | 11.2 | 1.5 |
| DJ30/12 | 6.9 | 30 | 12 | 174 | 1.5GCx5 | 10.2 | 1100F | CDL2-17 | 12.7 | 2.2 |
| DJ100/10 | 22.7 | 100 | 10 | 145 | D25-30x4 | 20 | 295F | CDL2-14 | 10.5 | 1.5 |
| DJ100/11 | 22.7 | 100 | 11 | 160 | D25-30x4 | 20 | 295F | CDL2-15 | 11.2 | 1.5 |
| DJ100/12 | 22.7 | 100 | 12 | 174 | D25-30x4 | 20 | 295F | CDL2-17 | 12.7 | 2.2 |
The above is part of technical parameters. More information pls contact us!
Widely used for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.
.jpg)
.jpg)
.jpg)
.jpg)
