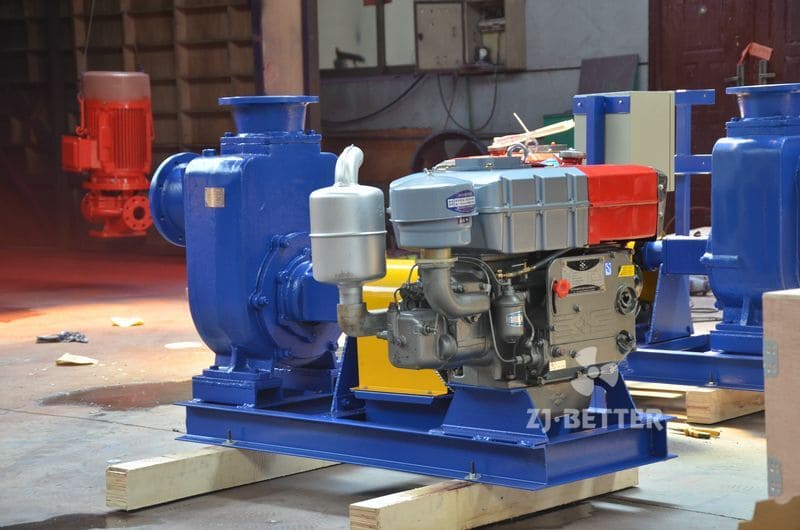

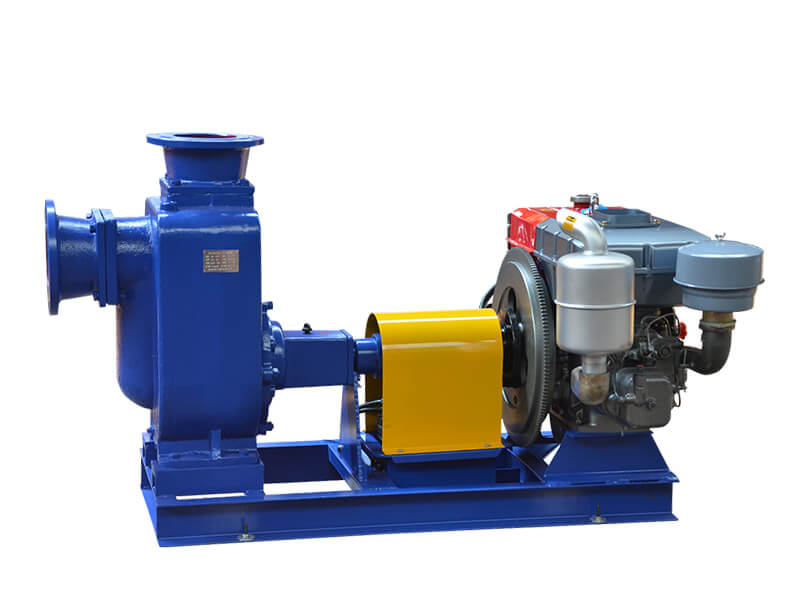

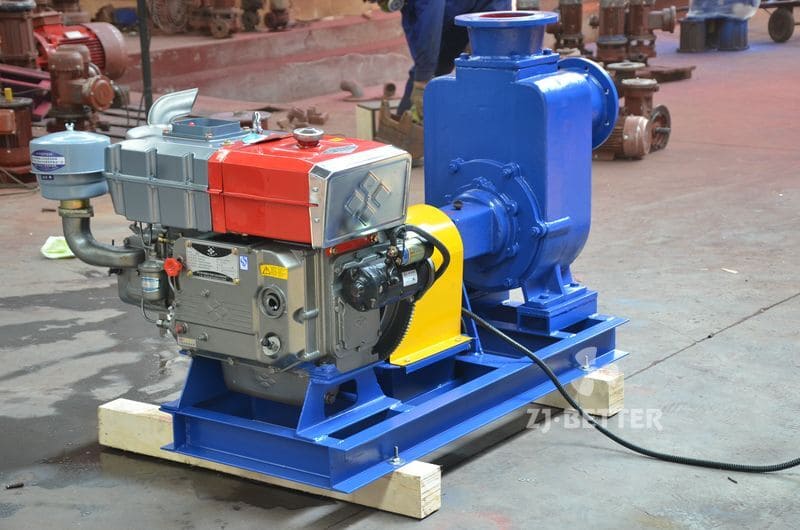

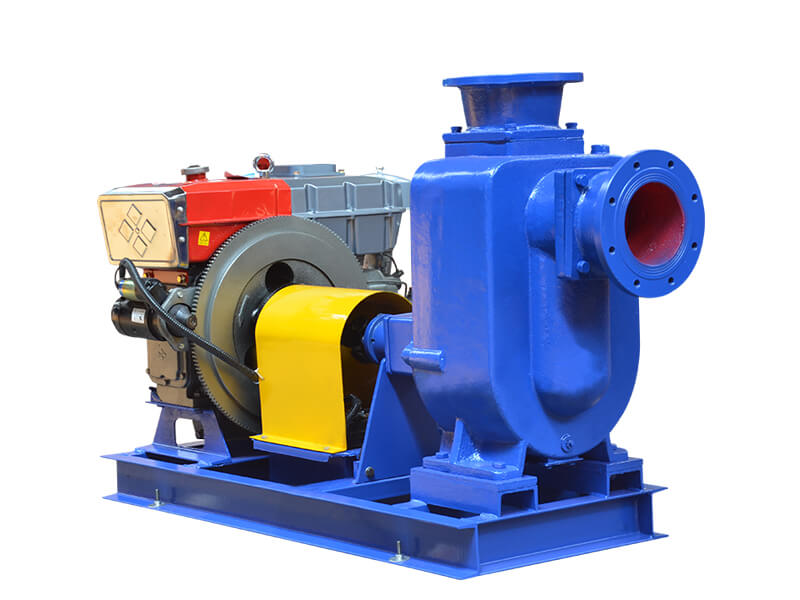

Self Priming Pump With Diesel Engine

Flow: 14-2700 gpm

Head: 12-80 meter

Suction: 5-7 meter

Caliber: 1-12 inch

Speed: 1450/2900 rpm

Power: 1-132 kw

If you want to get more product information please contact us!

Send E-mail Get Price

Introduction
Technical Data
Applications

Diesel Self Priming Pump Features

1. ZX self priming pump diesel engine driven works for water or medium similar to water that viscosity below 5°E and temperature below 80°C(176°F).
2. It is compact, easy to operate, running stable, easy to maintain, efficient, with long service life and large suction capacity.
3. The water pump with self priming ablity could work without bottom valve in channel but with the quantitative lead liquid that kept in pump before operation.
4. Pump may equipped with diesel engine for outdoor and wild water supply and drainage.
5. Widely used in city environmental protection , construction, fire fighting, chemical industry, pharmacy, dyes, dyeing, brewing, electric power, electric plating, paper-making, industrial and mineral rinse, equipment cooling and so on.

Working Principle:	Centrifugal, Self-priming
Main applications:	Water
Driver:	Electric motor, Diesel engine
Power Specs:	110/220/230V 1phase; 220/380/400/415V 3phase; 50hz/60hz
Max.permissible fluid temperature:	80°C(176°F)
Type of connection:	Flange
Installation position:	Horizontal
Casing parts material:	Cast iron, Stainless Steel
Shaft seal type:	Mechanical seal
Free passage:	0mm
Maximum drive rating:	132KW(180HP)
Maximum caliber:	300mm(12inch)
Maximum head:	80m(262.4ft)
Maximum suction:	6.5m(21.3ft)
Flow rate range:	3.2-600m3/h(14.1-2640US.GPM)

Technical Data

Model	Caliber	Capacity	Head	Power	Speed	Suction
	(mm)	(m3/h)	(m)	(kw)	(r/min)	(m)
25ZX3.2-20	25	3.2	20	1.1	2900	6.5
25ZX3.2-32	25	3.2	32	1.5	2900	6.5
32ZX3.2-20	32	3.2	20	1.1	2900	6.5
32ZX3.2-32	32	3.2	32	1.5	2900	6.5
32ZX3.2-50	32	3.2	50	3	2900	6.5
40ZX6.3-20	40	6.3	20	1.5	2900	6.5
40ZX6.3-32	40	6.3	32	2.2	2900	6.5
40ZX10-40	40	10	40	4	2900	6.5
40ZX6.3-50	40	6.3	50	4	2900	6.5
50ZX15-12	50	15	12	1.5	2900	6.5
50ZX18-20	50	18	20	2.2	2900	6.5
50ZX12.5-32	50	12.5	32	3	2900	6.5
50ZX12.5-40	50	12.5	40	4	2900	6.5
50ZX12.5-50	50	12.5	50	5.5	2900	6.5
50ZX20-30	50	20	30	4	2900	6.5
50ZX14-35	50	14	35	4	2900	6.5
50ZX10-40	50	10	40	4	2900	6.5
50ZX15-60	50	15	60	7.5	2900	6.5
50ZX20-75	50	20	75	11	2900	6.5
65ZX30-15	65	30	15	3	2900	6.5
65ZX25-32	65	25	32	5.5	2900	6
65ZX25-50	65	25	50	7.5	2900	6
65ZX25-70	65	25	70	15	2900	6
80ZX35-13	80	35	13	3	2900	6
80ZX43-17	80	43	17	4	2900	6
80ZX40-22	80	40	22	5.5	2900	6
80ZX50-20	80	50	20	5.5	2900	6
80ZX50-25	80	50	25	7.5	2900	6
80ZX50-32	80	50	32	7.5	2900	6
80ZX50-40	80	50	40	11	2900	6
80ZX60-55	80	60	55	18.5	2900	6
80ZX60-70	80	60	70	22	2900	6
100ZX80-20	100	80	20	11	2900	6
100ZX100-20	100	100	20	11	2900	6
100ZX100-32	100	100	32	15	2900	6
100ZX100-40	100	100	40	18.5	2900	6
100ZX100-50	100	100	50	22	2900	6
100ZX100-65	100	100	65	30	2900	6
100ZX70-75	100	70	75	30	2900	6
150ZX180-28	150	180	28	30	2900	6
150ZX170-55	150	170	55	45	2900	5
150ZX170-65	150	170	65	55	2900	5
150ZX160-80	150	160	80	55	2900	5
200ZX400-32	200	400	32	55	1450	5
200ZX280-63	200	280	63	90	1450	5
200ZX350-65	200	350	65	110	1450	5
250ZX550-32	250	550	32	75	1450	5
250ZX400-50	250	400	50	90	1450	5
250ZX450-55	250	450	55	110	1450	5
300ZX600-32	300	600	32	90	1450	5
300ZX500-50	300	500	50	110	1450	5
300ZX550-55	300	550	55	132	1450	5

Applications

A self-priming pump is able to overcome the problem of air binding by mixing air with water. After it gets rid of the air, the pump will continue to move water like a standard centrifugal pump.It is important to note that self-priming pumps can’t operate without water.Self-priming pumps can handle a variety of fluids and they do well with slurries, corrosive fluids, and solids.Solids handling is one of its most important advantages, as some self-priming pumps can handle solids up to 3 inches.Another advantage, when compared to a submersible pump, is its ability to continue pumping fluid while pump is still situated out of the pit.

Model	Caliber	Capacity	Head	Power	Speed	Suction
	(mm)	(m3/h)	(m)	(kw)	(r/min)	(m)
25ZX3.2-20	25	3.2	20	1.1	2900	6.5
25ZX3.2-32	25	3.2	32	1.5	2900	6.5
32ZX3.2-20	32	3.2	20	1.1	2900	6.5
32ZX3.2-32	32	3.2	32	1.5	2900	6.5
32ZX3.2-50	32	3.2	50	3	2900	6.5
40ZX6.3-20	40	6.3	20	1.5	2900	6.5
40ZX6.3-32	40	6.3	32	2.2	2900	6.5
40ZX10-40	40	10	40	4	2900	6.5
40ZX6.3-50	40	6.3	50	4	2900	6.5
50ZX15-12	50	15	12	1.5	2900	6.5
50ZX18-20	50	18	20	2.2	2900	6.5
50ZX12.5-32	50	12.5	32	3	2900	6.5
50ZX12.5-40	50	12.5	40	4	2900	6.5
50ZX12.5-50	50	12.5	50	5.5	2900	6.5
50ZX20-30	50	20	30	4	2900	6.5
50ZX14-35	50	14	35	4	2900	6.5
50ZX10-40	50	10	40	4	2900	6.5
50ZX15-60	50	15	60	7.5	2900	6.5
50ZX20-75	50	20	75	11	2900	6.5
65ZX30-15	65	30	15	3	2900	6.5
65ZX25-32	65	25	32	5.5	2900	6
65ZX25-50	65	25	50	7.5	2900	6
65ZX25-70	65	25	70	15	2900	6
80ZX35-13	80	35	13	3	2900	6
80ZX43-17	80	43	17	4	2900	6
80ZX40-22	80	40	22	5.5	2900	6
80ZX50-20	80	50	20	5.5	2900	6
80ZX50-25	80	50	25	7.5	2900	6
80ZX50-32	80	50	32	7.5	2900	6
80ZX50-40	80	50	40	11	2900	6
80ZX60-55	80	60	55	18.5	2900	6
80ZX60-70	80	60	70	22	2900	6
100ZX80-20	100	80	20	11	2900	6
100ZX100-20	100	100	20	11	2900	6
100ZX100-32	100	100	32	15	2900	6
100ZX100-40	100	100	40	18.5	2900	6
100ZX100-50	100	100	50	22	2900	6
100ZX100-65	100	100	65	30	2900	6
100ZX70-75	100	70	75	30	2900	6
150ZX180-28	150	180	28	30	2900	6
150ZX170-55	150	170	55	45	2900	5
150ZX170-65	150	170	65	55	2900	5
150ZX160-80	150	160	80	55	2900	5
200ZX400-32	200	400	32	55	1450	5
200ZX280-63	200	280	63	90	1450	5
200ZX350-65	200	350	65	110	1450	5
250ZX550-32	250	550	32	75	1450	5
250ZX400-50	250	400	50	90	1450	5
250ZX450-55	250	450	55	110	1450	5
300ZX600-32	300	600	32	90	1450	5
300ZX500-50	300	500	50	110	1450	5
300ZX550-55	300	550	55	132	1450	5

Self Priming Pump With Diesel Engine

Diesel Self Priming Pump Features

Technical Data

Applications

Fire Pump System

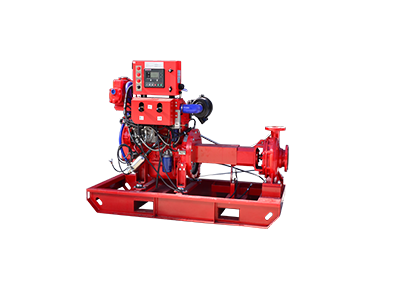

Diesel Fire Pump
